E-FEED+3
Powder centers (PM1/PM2/PM3), the AP3 application pump, the INJ injector, the VHC2 powder recovery unit, and barrel-based feed systems. INJ and AP3 pair directly with E-COAT+3 control systems, so their full electrical specifications are documented within the corresponding E-COAT+3 manuals rather than as standalone datasheets — see the linked E-COAT+3 manual below for complete specs, or reach out and we'll point you to the right section.

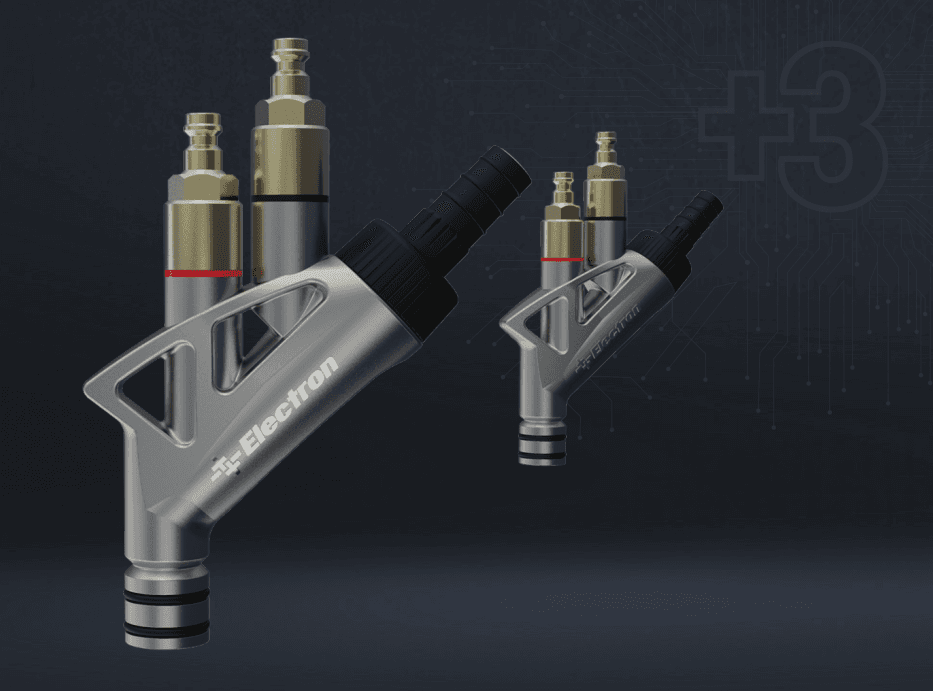

INJ (Injector)
The Electron E-FEED+3 INJ Series powder coating injector is suitable for both manual and automatic applications. Thanks to its angled structure, Electron's 3rd-generation powder coating injector provides 25% more powder transfer than right-angle injectors and consumes 10% less air. It offers an optimum coating solution thanks to homogeneous painting, energy efficiency, and easy maintenance. With its patented filter structure, it ensures the application safety of the equipment to which it is connected.
- High transfer efficiency thanks to its angled structure
- Patented auxiliary air and paint air filtration system
- Easy teflon bushing and nozzle replacement
- High-durability teflon bushing engineered for superior performance
- Conductive powder coating adapter
- Patented powder delivery system
| Compatible Control Units | E-COAT+3 MASTER, PRO, LAB DI |
| Max Output (with MASTER, 100 lt/min air) | 425 g/min |
| Max Output (with PRO, 0.3 MPa) | 420 g/min |
| Wear Part — Teflon Bushing | 160 hrs (shortest interval of any consumable) |
| Full Specifications | Documented within the paired E-COAT+3 manual — see Manuals & Spec Sheets below |

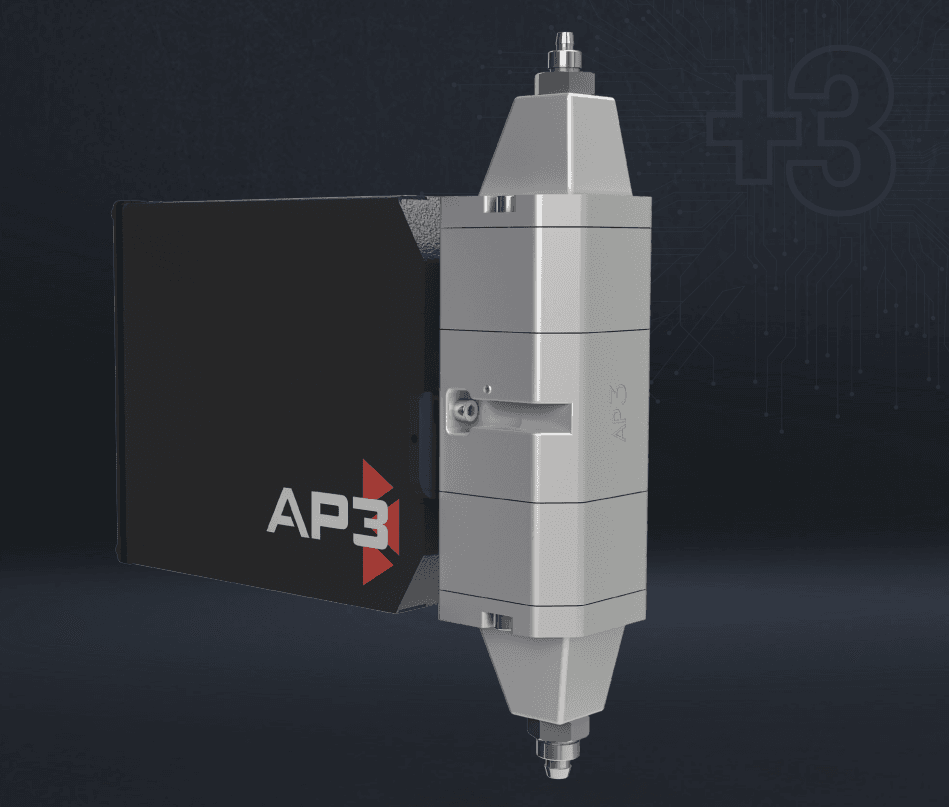

AP3 (Application Pump)
Designed for industrial painting applications, the AP3 Application Pump delivers outstanding performance, durability, and efficiency thanks to its patented TriFlow Technology. Equipped with three separate suction and pressure chambers, this system guarantees high efficiency and uninterrupted operation across all types of coating jobs, ensuring top-quality finishes while speeding up production and cutting down costs.
- Easy maintenance
- Powder output up to 900 g/min with TriFlow Technology
- Patented TriFlow Technology
- Stable performance
- Fixed coating thickness
- Repeatable coating results
- High transfer efficiency
- Linear dust flow
- ATEX II 3D protection
| Pairs With | E-COAT+3 MASTER P3 |
| Max Powder Output | 900 g/min (at 100% paint) |
| Periodic Maintenance Kit Interval | 1,500 hrs (part B07FAP3004) |
| Full Specifications | Documented within the paired E-COAT+3 manual — see Manuals & Spec Sheets below |

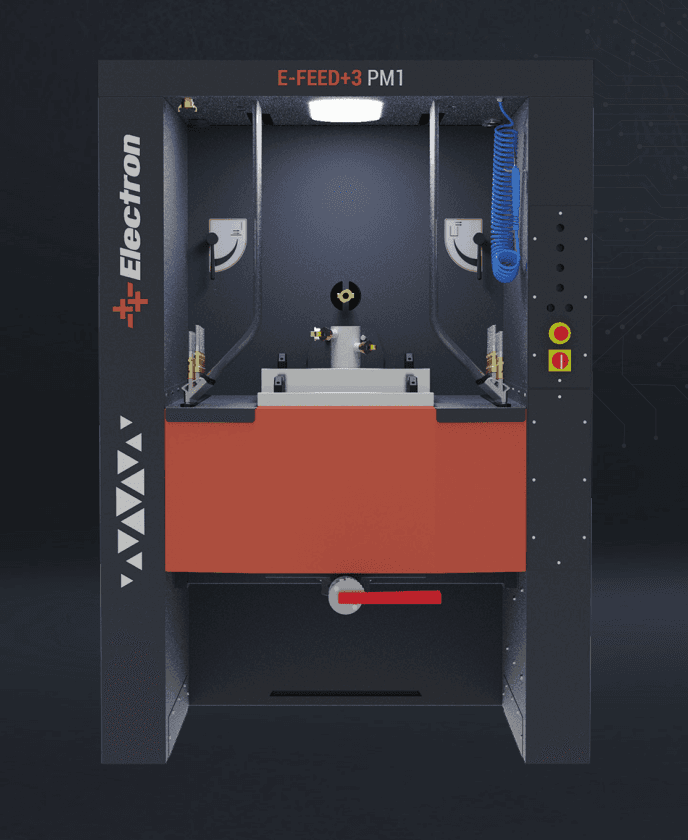

PM1 (Powder Center)
PM1 Series paint centers are designed for applications where manual color changing is sufficient. Thanks to its simple design, it is user-friendly and allows various production applications with its flexible structure. It is a suitable solution for applications that require rare color changes. It is used together with Electron Filter Groups as an exhaust system.
| Model Codes | PM120 (up to 20 injectors) / PM130 (up to 30 injectors) / PM120P (up to 20 application pumps) |

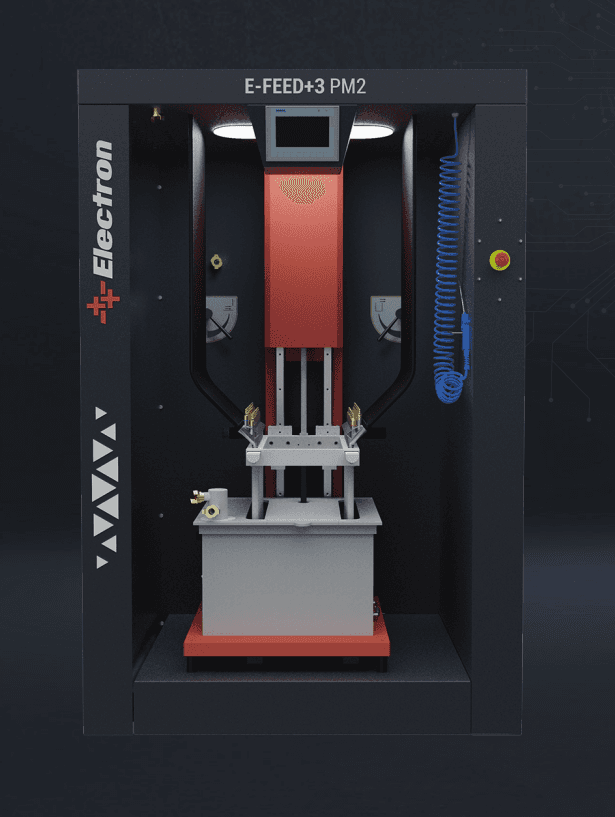

PM2 (Powder Center)
E-FEED+3 PM2 Series powder centers are designed for applications where semi-automatic color change is needed. They provide fast cleaning as well as effective and homogeneous powder transfer, and are used together with Electron Filter Groups as an exhaust system. Thanks to its motion-activated mechanism, it provides automatic cleaning of the system by directly supplying air to the injector line — an optimal solution for productions requiring medium-frequency color changes.
| Model Codes | PM220 (up to 20 injectors) / PM230 (up to 30 injectors) |

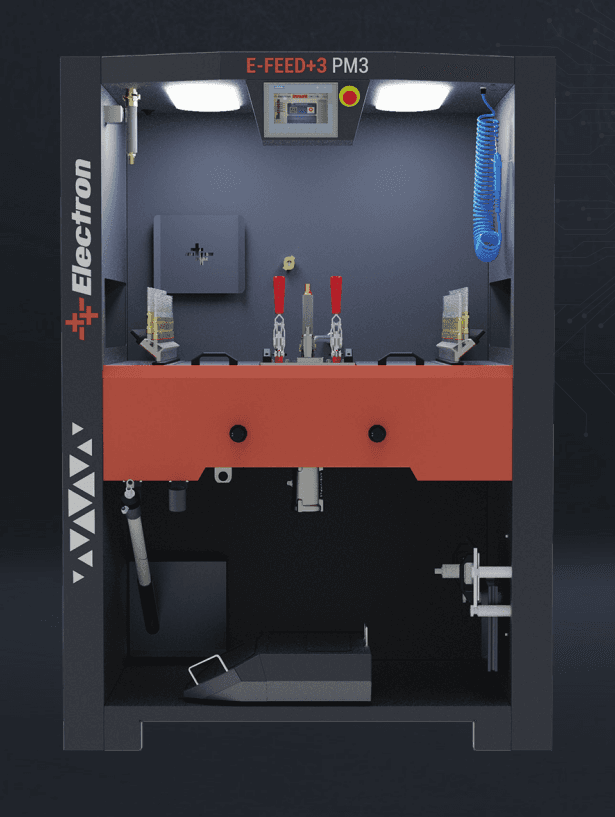

PM3 (Powder Center, Enclosed Tank)
E-FEED+3 PM3 Series powder coating center is the ultimate product in powder coating transfer, with the fastest and most detailed cleaning feature of all powder coating stations. The user-friendly interface makes the system easy to use, and it provides homogeneous powder distribution thanks to its efficient powder transfer system. The PM3 powder tank is completely isolated, allowing fast and effective color change without the need for user contact with the paint. It is used together with Electron Filter Groups as an exhaust system — an optimal solution for productions requiring medium-frequency color changes.
| Model Codes | PM320 (up to 20 application pumps) / PM330 (up to 30 injectors) |

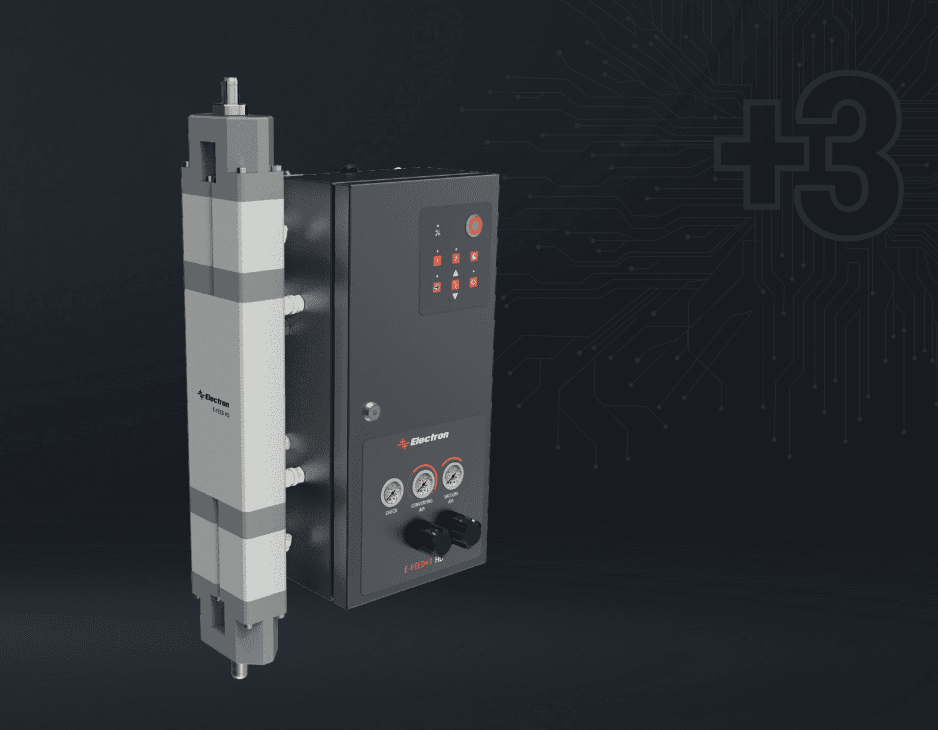

HD (Quick Self-Cleaning)
E-FEED+3 HD Series has a quick self-cleaning function that allows cleaning in a few seconds thanks to the smooth inner surface and the special material used. The quick-connect design of the powder transfer unit to the unit body allows spare workpieces to be replaced without stopping the pump.
- Transfer pressure adjustment
- Vacuum pressure adjustment
- 7.9 kg/min dust transfer capacity
- Quick spare workpiece replacement
- Timer for spare workpiece lifetime
- Easy process control with "control manometer"
- 2-stage pumping frequency selection
- Optional dust level sensor connection
- Transfer feature in both directions (up/down, down/up)
- Embossing air outlet
| Protection Class | ATEX II 3D, IP54 |

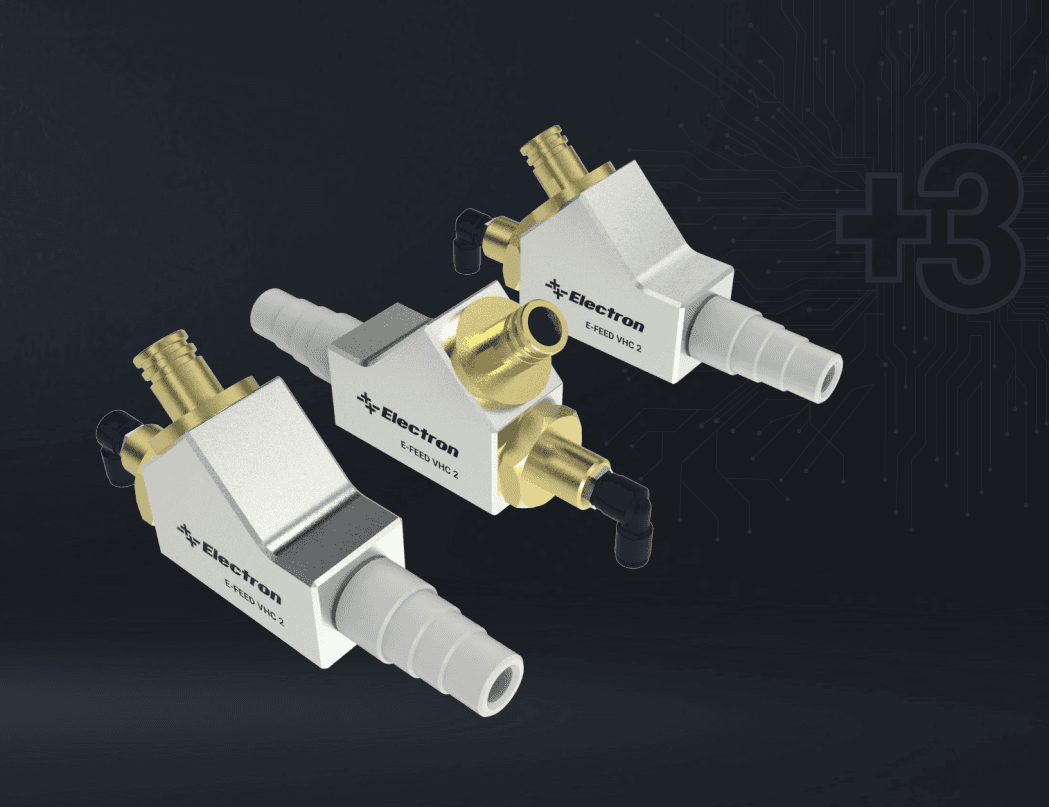

VHC2 (Powder Recovery)
The Electron E-FEED+3 VHC2 is important in terms of sustainability and is used for the transfer of recovered powder. It enables powder recovered from the cyclone bottom to be transferred to the Powder Center, Powder Tank, etc. quickly with its high transfer capacity. It also offers advantageous paint transfer solutions thanks to its easy maintenance.
- High transfer capacity (up to 1,000 g/min)
- Fast and effective powder coating transfer
- Cost-effective
- Easy maintenance and advantageous operation

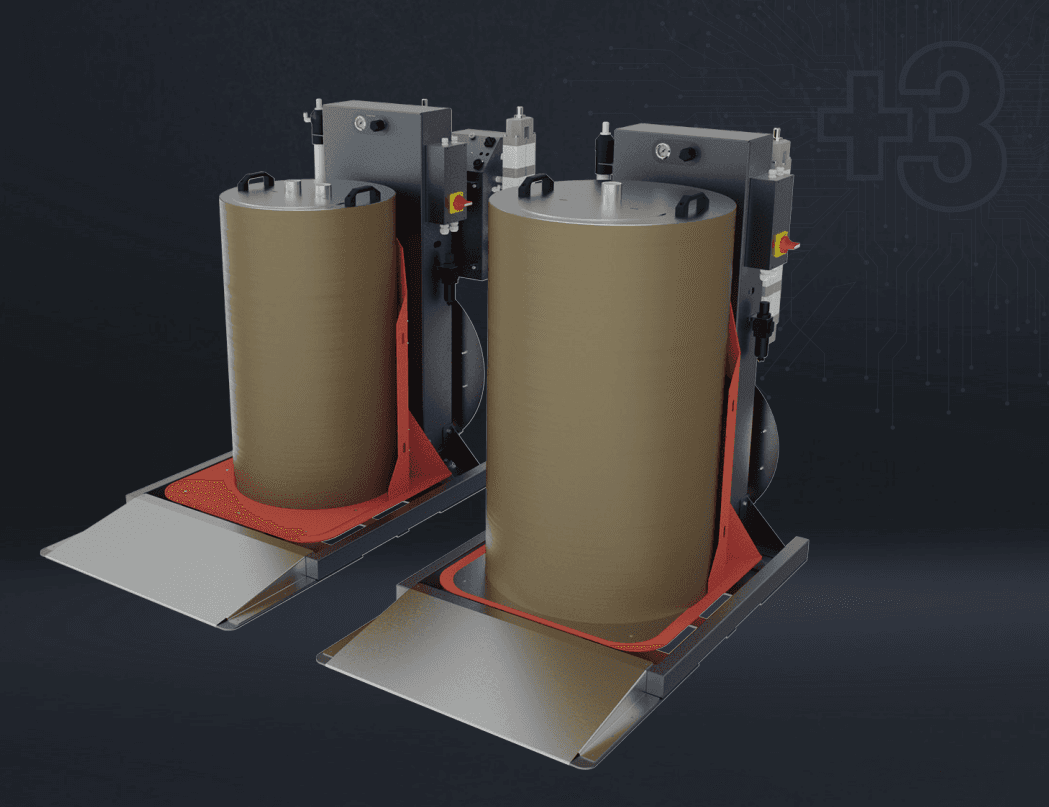

BARREL
Barrel-based feed system.
Manuals & Spec Sheets
No standalone E-FEED+3 manual exists yet. INJ and AP3 specs above come from the E-COAT+3 manuals below, where they appear as the paired powder delivery system.
