E-GUN+3
All three guns share the same electrical platform: a 20 Vp-p / 17 kHz signal from the control unit is stepped up inside the gun to 120 kV / 120 µA. All three (C1, C2, C3) are CE + ATEX (Ex) II 2 D certified — confirmed directly against each gun's own manual.

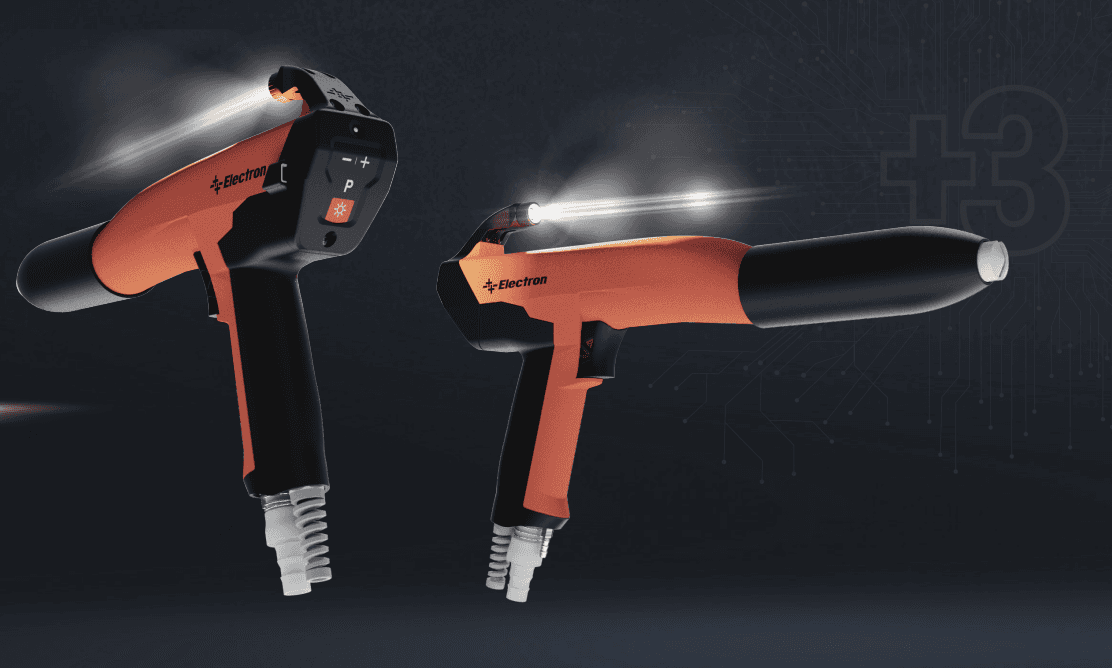

C1 (Manual Gun)
E-GUN+3 Series powder coating guns convert the signals sent from the control unit into static electrical energy and provide the unit with the necessary feedback signals. Various products with high precision and efficiency can be coated thanks to different types of nozzles.
| Part Code | B07EGC100+3 |
| Output Voltage (Nominal) | 120 kV |
| Output Current (Max.) | 120 µA |
| Input Voltage (Nominal) | 20 Vp-p |
| Frequency | 17 kHz (average) |
| Ingress Protection | IP 64 |
| Certification | CE, ATEX — II 2 D |
| Weight | 495 g |
| Usable Powders | Plastic ✓, Metallic ✓, Enamel ✗ |

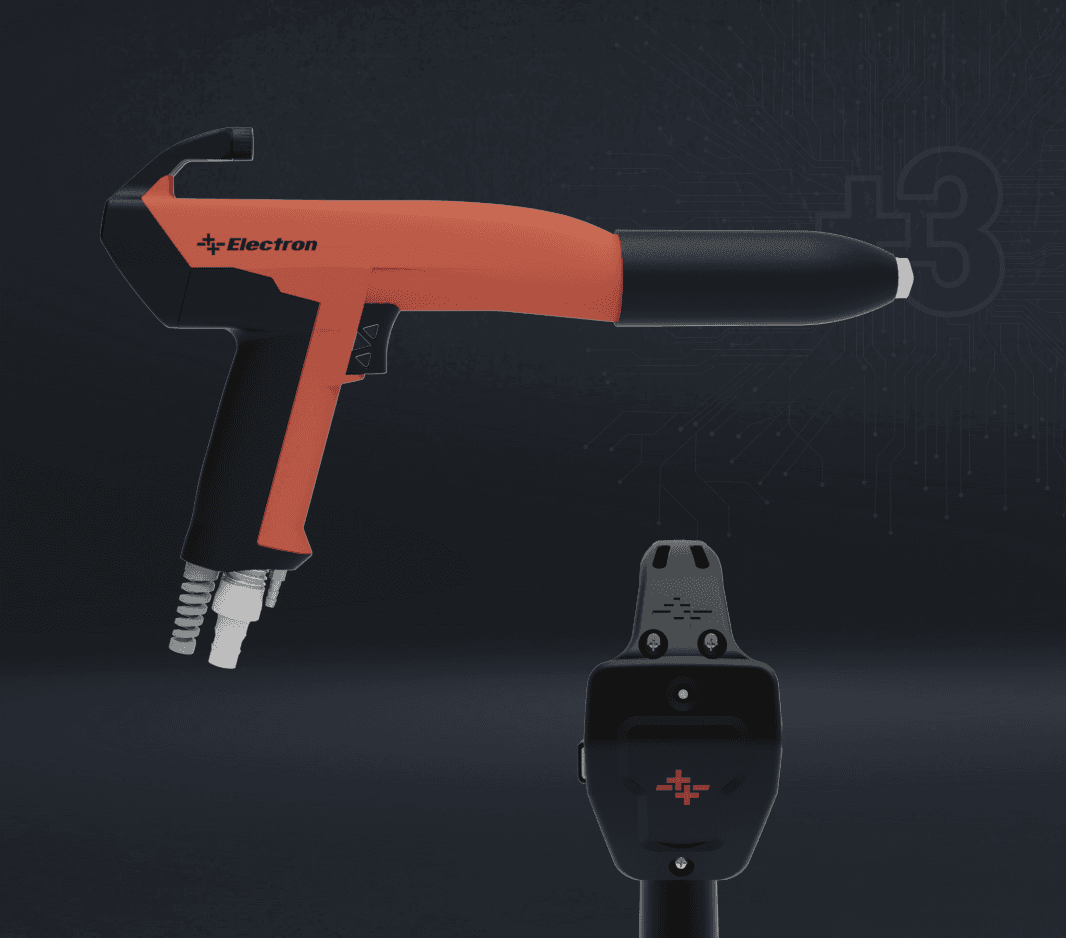

C2 (Manual Gun)
E-GUN+3 C2 series provides the precision and efficiency you are looking for in manual powder coating guns. This gun, which converts the signals received from the control unit into static electrical energy, makes it possible to coat many products with different nozzles.
- Effective feedback signals with voltage doubler system
- Safe body structure with anti-static material, complying with explosive atmosphere directives
- Special PUR-sheathed cable offers increased security and durability
- Lightweight, ergonomic design for comfort during long-term work
- Hose adapter for quick and practical hose or color changes
- Specially designed electrode and nozzle types that are easy to clean
- ATEX certification for compliance with safety standards
- Corona ion collector and angled nozzle options for compatibility with various application needs
| Part Code | B07EGC200+3 |
| Output Voltage (Nominal) | 120 kV |
| Output Current (Max.) | 120 µA |
| Input Voltage (Nominal) | 20 Vp-p |
| Frequency | 17 kHz (average) |
| Ingress Protection | IP 64 |
| Certification | CE, ATEX — II 2 D |
| Weight | 500 g |
| Usable Powders | Plastic ✓, Metallic ✓, Enamel ✗ |

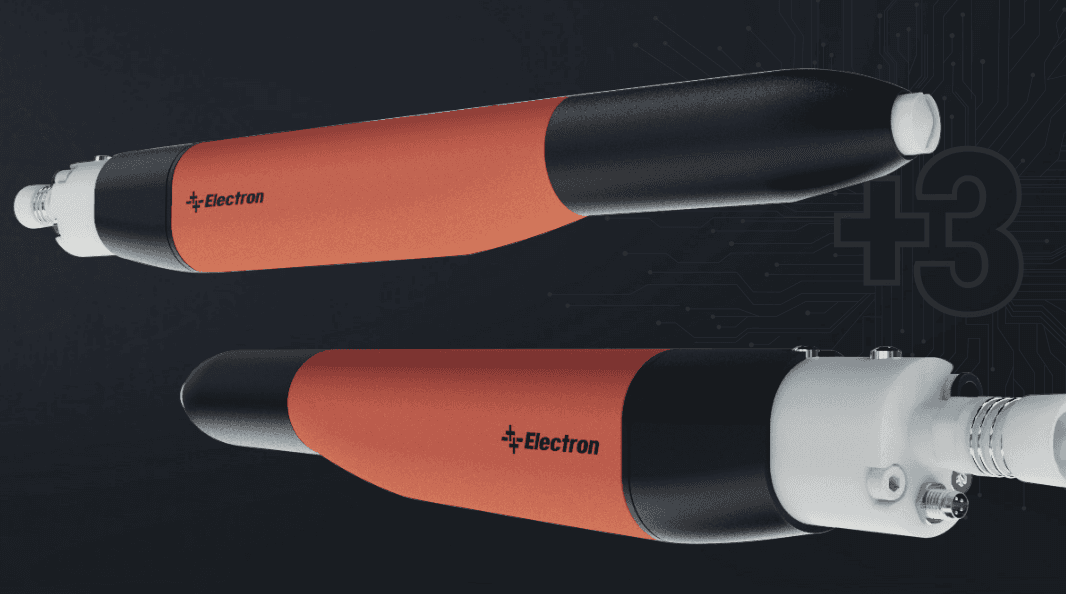

C3 (Automatic Gun)
E-GUN+3 new-generation automatic powder guns are designed to work in harmony with improved powder paint control modules, and exhibit high performance in paint delivery with both E-FEED+3 AP3 and E-FEED+3 INJ. The C3 automatic gun delivers a more effective painting performance thanks to its reduced volume and developed technology, aiming to provide the healthiest and highest-quality results after application.
- Control over static current and voltage through a feedback mechanism
- Safe operating conditions with a special PUR-sheathed cable
- Lighter weight (700 g) compared to its predecessors
- Quick hose/color change through the fast powder hose adapter
- Easy cleaning with special design electrodes and a variety of nozzles
| Part Code | B07EGC300+3 |
| Output Voltage (Nominal) | 120 kV |
| Output Current (Max.) | 120 µA |
| Input Voltage (Nominal) | 20 Vp-p |
| Frequency | 17 kHz (average) |
| Ingress Protection | IP 64 |
| Certification | CE, ATEX — II 2 D |
| Weight | 700 g |
| Usable Powders | Plastic ✓, Metallic ✓, Enamel ✗ |
